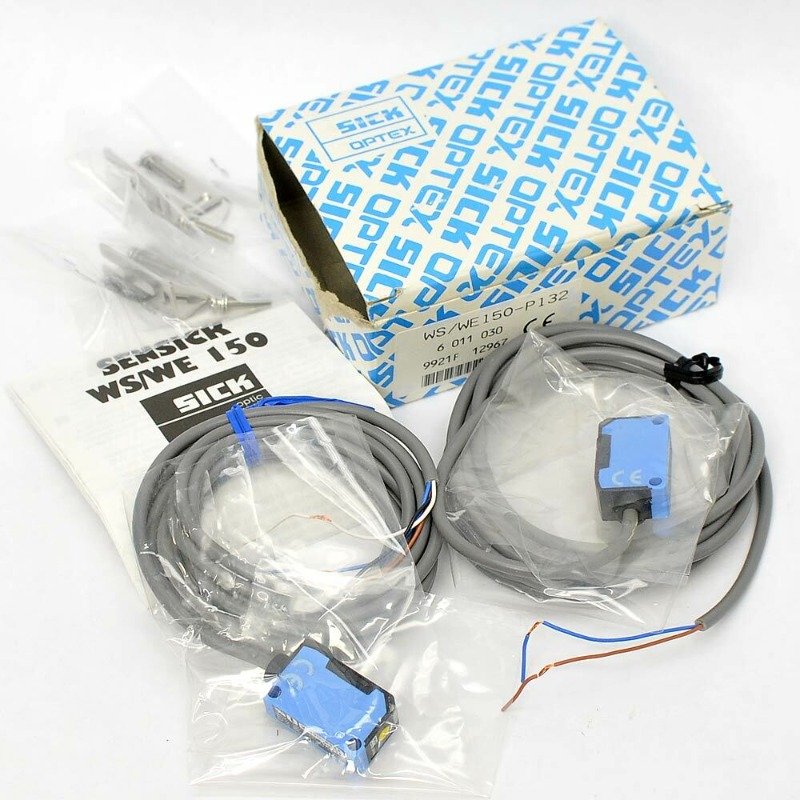

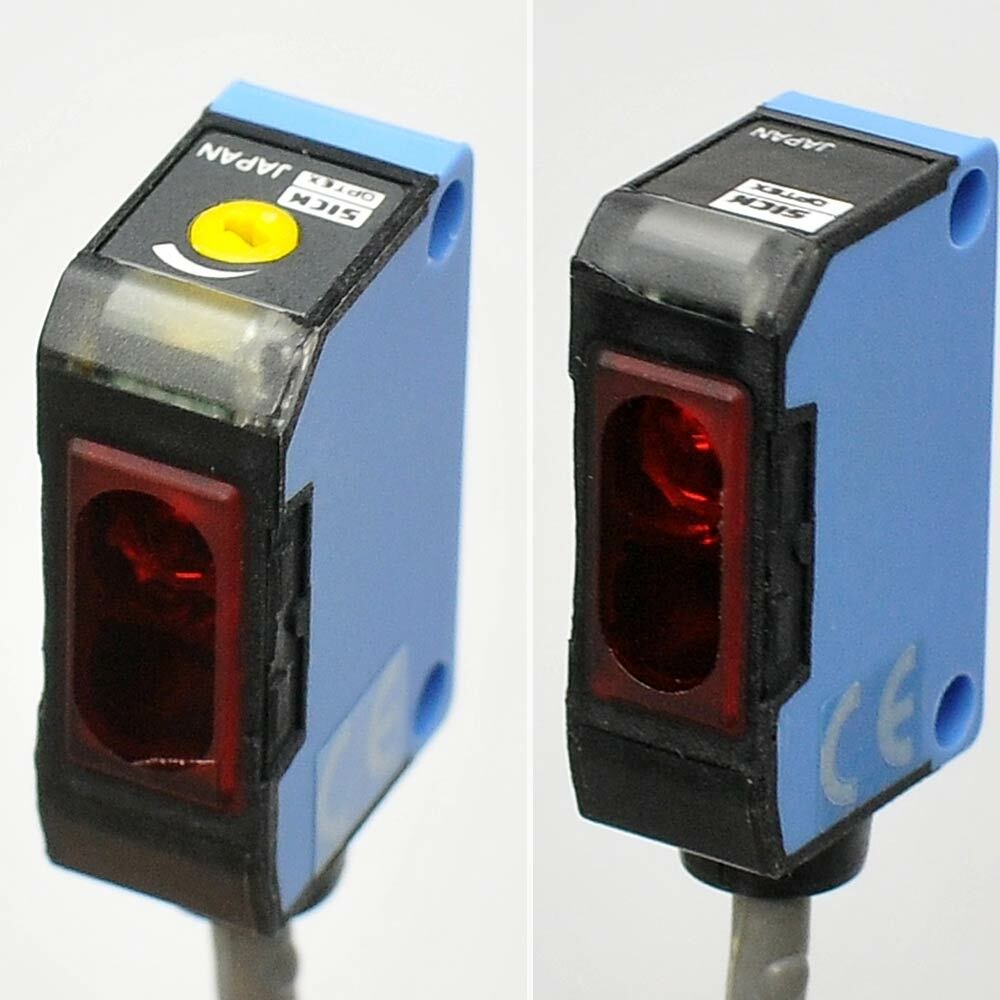

SICK WS/WE150-P132 Through-Beam Photoelectric Sensor

  • In Stock

  • 0 Review(s)

  • New

Price :

PKR17500 PKR18000

Product SKU: Jt82309Wkn

SPECIFICATION

      Manufacturer                                            SICK

Supply voltage                                        10 V DC ... 30 V DC 1)

Ripple                                                      ± 10 % 2)

Current consumption                               15 mA 3)

                                                                 20 mA 4)

Switching output                                       PNP

Switching mode                                        Light/dark switching

Switching mode selector                         Selectable via L/D control cable

Output current Imax                                ≤ 100 mA

Response time                                        ≤ 0.5 ms 5)

Switching frequency                               1,000 Hz 6)

Angle of reception                                  15°

Connection type                                      Cable, 4-wire, 2 m 7)

Cable material                                         PVC

Conductor cross-section                         0.18 mm²

Circuit protection                                     A 8)

                                                                B 9)

                                                                C 10)

                                                                D 11)

Protection class                                      II

Weight                                                    44 g

Enclosure rating                                     IP67

Items supplied                                        BEF-W150-A mounting bracket

Sensor/ detection principle                    Through-beam photoelectric sensor

Dimensions (W x H x L)                        10 mm x 28 mm x 17.5 mm

Housing design (light emission)            Rectangular

Sensing range max.                               0 m ... 4.4 m

Sensing range                                        0 m ... 4 m

Focus                                                        6°

Type of light                                             Visible red light

Light source                                             LED 1)

Angle of dispersion                                 6°

Adjustment                                               Potentiometer, 270°

Ambient operating temperature             –25 °C ... +55 °C

Ambient temperature, storage               –40 °C ... +75 °C

UL File No.  NRNT2.E128350 & NRNT8.E128350

·         FEATURES

        1) Limit values.

        2) May not exceed or fall below Uv tolerances.

        3) Sender.

        4) Receiver.

        5) Signal transit time with resistive load.

        6) With light/dark ratio 1:1.

       7) Do not bend below 0 °C.

       8) A = VS connections reverse-polarity protected.

        9) B = inputs and output reverse-polarity protected.

        10) C = interference suppression.

        11) D = outputs overcurrent and short-circuit protected.

            Average service life: 100,000 h at TU = +25 °C.
