•          OVERVIEW

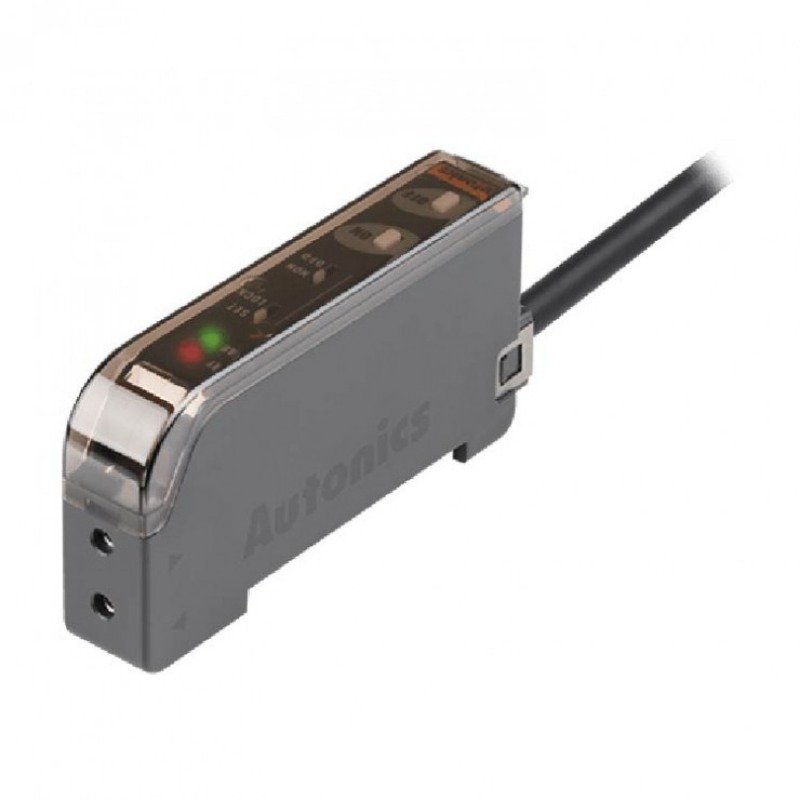

The BF4 series fiber optic amplifiers feature high-speed response times and various functions to provide reliable detection of small or fast moving targets. The units feature convenience functions such as auto-sensitivity adjustment and advanced features including mutual interference prevention and self-diagnosis function. The amplifiers can be used together with fiber optic cables from Autonics for optimal performance styleBF4R, a high performance fiber optic amplifier, features a compact structure designed to fit into narrow spaces. This fiber optic amplifier has fast response speed of under 0.5ms, and can be compactly mounted. Also, external synchronization input function, mutual interference protection and self-diagnosis function enhance user experience justify

•              FEATURES

1.             Standard type/external synchronization type/remote sensitivity setting type face style justify

2.             Auto sensitivity adjustment/remote sensitivity adjustment

3.             Mutual interference prevention function, self diagnosis function

4.             Built-in reverse polarity protection circuit ,output  short-circuit (overcurrent) protection circuit

5.             Auto light on /dark on mode switching

6.             High speed response: Max 0.5ms

7.             Auto sensitivity setting (button setting)/ remote sensitivity setting

8.             External synchronization input, mutual interference protection, self diagnosis

1.       Timer function: Selectable none  40ms,OFF delay timer(fixed) (standard type, remote sensitivity setting type only)

Automatically selectable Light ON/Dark ON

Precise detection of small target and easy to install in the complicated place

SPECIFICATION

Brand                                                     Korea

Response Time                                     Less than 0.5ms

Output Operation                                  Light-ON/Dark-ON selector

Sensing Output                                    NPN Transistor - open collector

Sensitivity Setting                                 Automatic setting by Auto Tuning type

Timer Function                                     Selectable; OFF Delay Timer 40ms fixed

Current                                                 Sink Current: Max 100mA Max. 30VDC With short circuit protection

Power source                                       Self Diagnostic output</td><td>NPN Transistor open collector

50mA 30VDC Max                               Stable Operation Indicator</td><td> Red LED (illuminates when output is ON state)

Stable operation indicator:                  RED LED stable operator indication: Green LED illuminates

Type                                                    Fiber Optic Sensor
