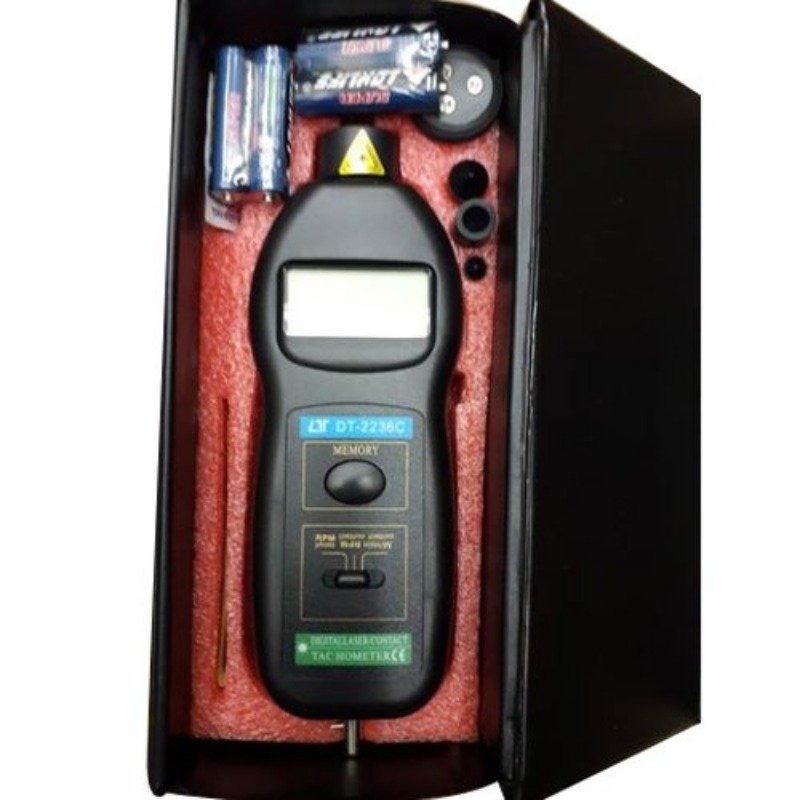

DT2236C Ele-Khawaja Engineering Services

Price :

PKR4000 ~~PKR5500~~

Estimated Shipping Time: 3 Days in Punjab

Product SKU: B5E6260r7e

Report This Item

Features

Laser photo & surface contact measurements
Reads in RPM (2.5 ~ 99,999), m/min (0.05 ~ 1,999.9) and ft/min (0.2~6,560)
Wide Measuring Range of 0.5~99,999RPM
With Auto Ranging and automatic low power indication
LSI-circuit and crystal time base mechanism for high accuracy & fast measuring time
Last value, maximum value and minimum value
Insignificant zero suppression
Durable & light weight
Tested according to European international guidelines and standards(CE Marking)

Display	5 digit, 10mm LCD with function annunciation
Measurement	Photo Tach : 2.5 ~ 99,999 RPM Contact Tach : 0.5 ~ 19,999 RPM Surface Speed : 0.05 ~ 1,999.9m/min
Resulation	Photo Tach: 0.1RPM (2.5 ~ 999.9 RPM) 1 RPM (over 1,000 RPM) Contact Tach: 0.1 RPM (0.5 ~999.9 RPM) 1 RPM (over 1,000 RPM) Surface Speed: 0.01 m/ min (0.05~99.99 m/min) 0.1m/ min (over 100 m/min) Surface Speed: 0.1ft/min (0.1 ~ 999.9 ft/min) 1ft/min (over 1000 ft/min)
Accuracy	±(0.05% +1 digit)
Sampling time	Photo Tach (1 sec,over 60 RPM) Contact Tach (1 sec, over 60 RPM)
Photo Tach. Detecting Distance:	50~500mm/2~20inch
Memory	Last value, Max. value, Min.value
Test Range Select	Automation
Time base	Quartz crystal
Circuit	Exclusive one chip of microcomputer LSI circuit
Battery	4 x 1.5AA Battery
Operation temperature	0~50°C(32~122°F)
Size	215 x 65 x 38mm
Weight	300g including battery
