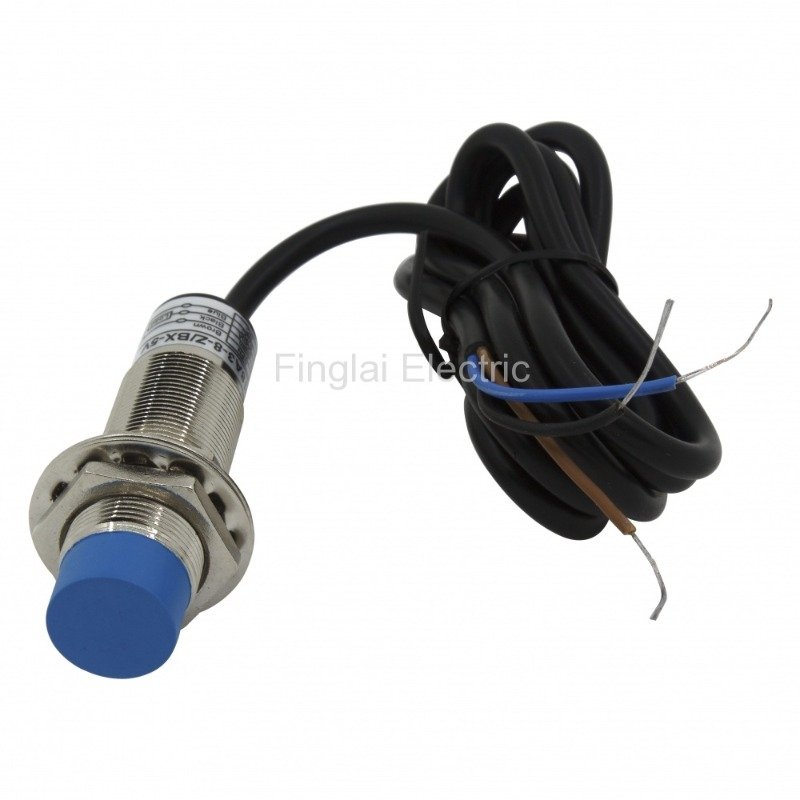

Inductive Proximity sensor

 OVERVIEW

 inductive proximity sensor switch work voltage 0 to 24V DC special for MCU

SPECIFICATION

Model                                       LJ18A3-8-Z/BX

Wire type                                 DC2 wire type

Switch appearance type       Cylinder type

Theory                                     Inductive type

Type                                         NPN $ PNP

Diameter of head                  18mm

Detecting distance                8mm

Supply voltage                       DC 0 to 24V

Current output                      300mA

Detect object                         iron

Operating temperature      -25C TO +55C

Size                                          7x3cm/2.8”x1.2”

Cable length                          103cm/40.55”

External material                  Plastic

Net weight                             80g
