SPECIFICATION

Range                                                                      TeSys

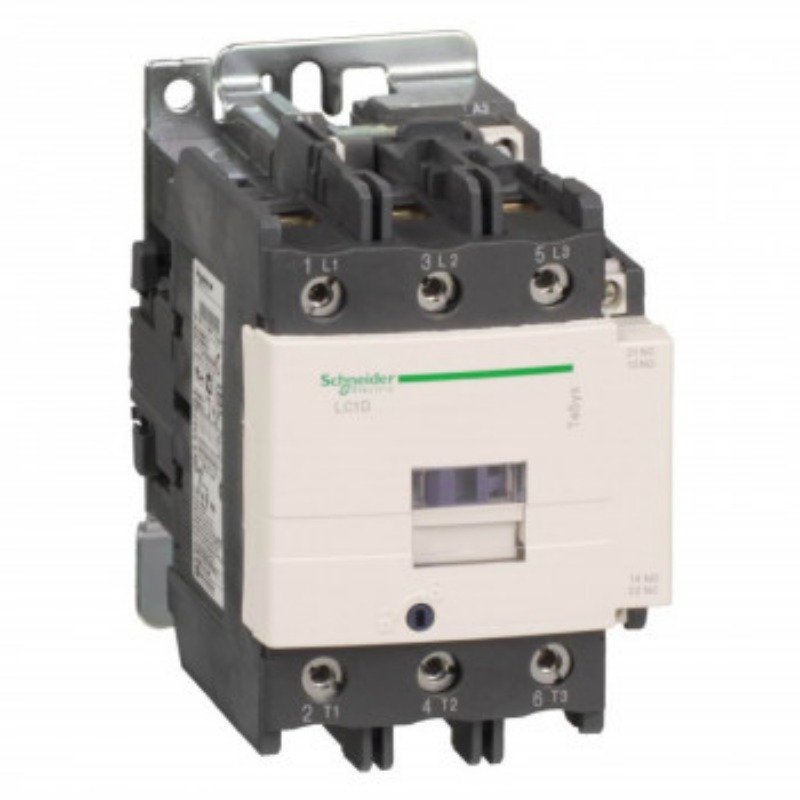

Product name                                                       TeSys D

Product or component type                               Contactor

Voltage                                                                   220v, 240v

Frequency                                                              50 to 60Hz

Device short name                                               LC1D contactor application

Motor control                                                        Resistive load

Poles description                                                  3P

Power pole contact composition                       3 NO

[Ie] rated operational current                            95 A, Ith load: 125A

Auxiliary contact composition                            2 NO + 2 NC

Electrical durability                                              1.2Mcycles 95A AC-3

                                                                                1.3Mcycles 125A AC-1

Power dissipation per pole                                 12.5W AC-1 & 7.2W AC-3

Mechanical durability                                           4 Mcycles

Maximum operating rate                                    3600 cyc/h 60C

Height                                                                    127 mm

Width                                                                      85 mm

Depth                                                                     130 mm

Net weight                                                             1.61 kg

      Warranty                                                       1year

 Features

  •         As the best selling line of contactors in the world, TeSys D offers multi-standard solutions, high reliability with long mechanical and electrical durability for different sizes,

        along with the most complete accessories in the industry.

  •         TeSys D contactors leverage over 100 years of experience and innovation to control your motors.
