Features

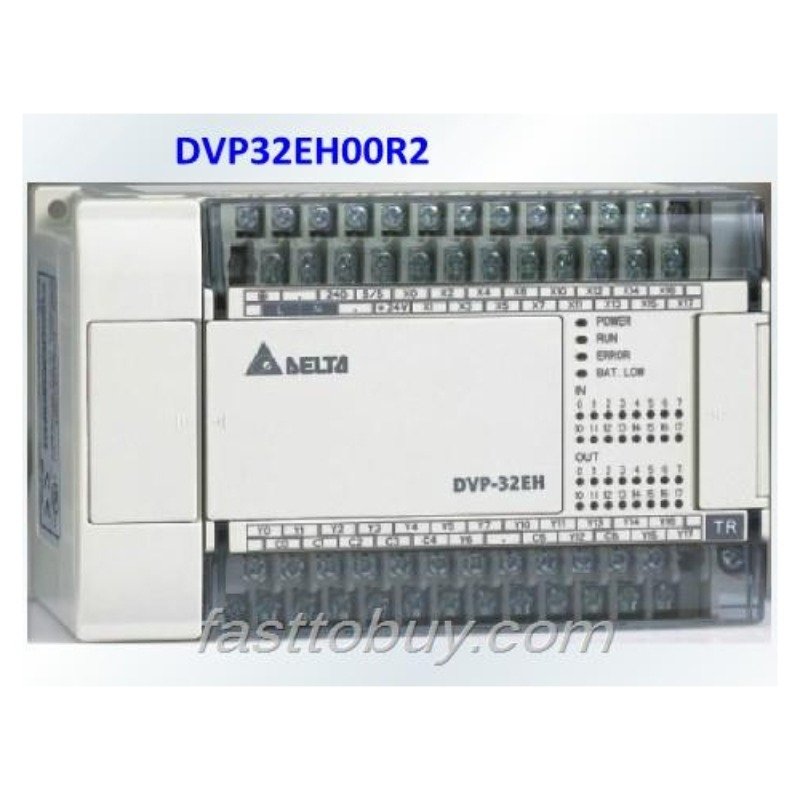

EH2 series is well equipped with outstanding operational speed, large programming capacity and built in application and communication instructions, multiple special extension modules and function cards, enabling the efficiency of the MPU to be utilized to its fullness.

Specifications

*MPpoints:16/20/32/40/48/64/80
*MaxI/Opoints:512
*Programcapacity:16KSteps
*Instruction:.24µS(basicinstruction)
*Communication port: Built-in RS-232 and RS-485, compatible with MODBUS ASCII / RTU communication protocol
*Dataregister:10,000words
*Fileregister:10,000words
*High-speed:pulseoutput:
20-point and 32-point models support 2-point 200KHz pulse output (Y0, Y2); 40-point models support A/B phase 200KHz pulse output (Y0, Y1)(Y2, Y3) and 2-point 200KHz pulse output (Y4, Y6).
*Built-in 4 groups of hardware high-speed counters
