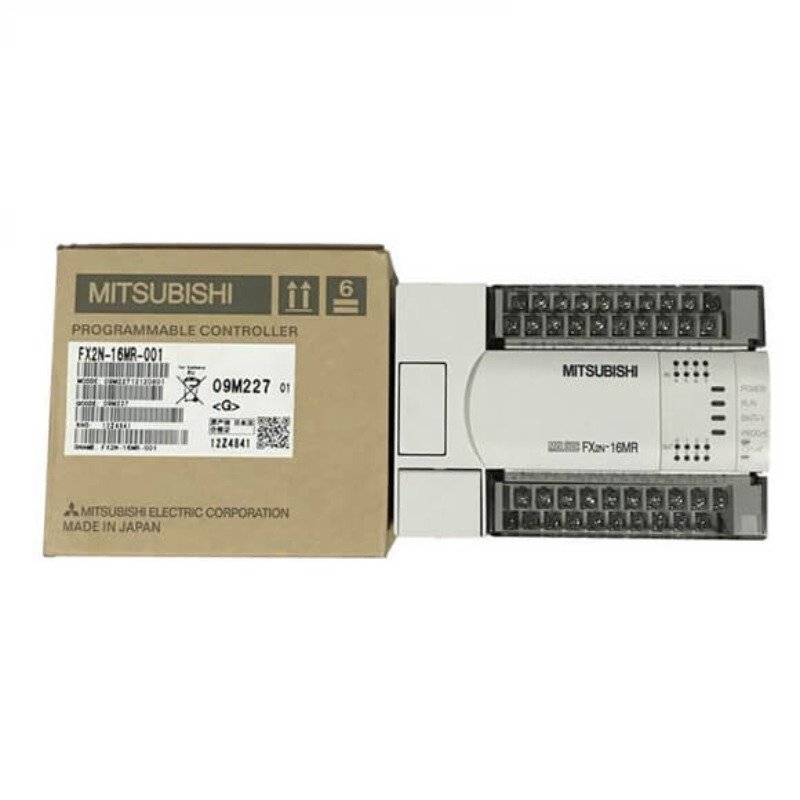

·                     Mitsubishi PLC Module FX2N-16MR-001/FX2N-16MT-001

·                     Support and Supply Mitsubishi PLC Controller Module FX2N FX2NC Series

SPECIFICATION

Mitsubishi PLC Module                                FX2N and the FX2NC PLC’s Specification

Operation control method                          Cyclic operation by stored program

I/O control method                                       Batch processing method (when END instruction is executed)

Operation processing time                          instructions: 0.08 msApplied instructions: 1.52 to several 100 ms

Programming language                               Relay symbolic language + step ladder

Program capacity                                          8000 steps built in

 Number of instructions                              Basic sequence instructions: 20 Step ladder instructions: 2 Applied instructions: 125

I/O configuration                                           Max hardware I/O configuration points 255, dependent on user selection

Auxiliary relay(M coils)                                 3072POINTS

Auxiliary relay(M coils)                                 2572 points (subset)      M500 to M3071

Auxiliary relay(M coils)                                 256 points                       M8000 to M8255

State relays (S coils)                                      1000 points       S0 to S999

State relays (S coils) Latched                       500 points (subset)      S500 to S999

State relays (S coils) Initial                           10 points (subset)          S0 to S9

State relays (S coils) Annunciator               100 points          S900 to S999

Timers (T) 100 msec                                      Range: 0 to 3,276.7 sec200 points           T0 to T199

Timers (T) 10 msec                                        Range: 0 to 327.67 sec46 points               T200 to T245

Timers (T) 1 msec retentive                         Range: 0 to 32.767 sec4 points  T246 to T249

Timers (T) 100 msec retentive                    Range: 0 to 3,276.7 sec6 points  T250 to T255

Counters (C) General 16 bit                        Range: 1 to 32,767 counts200 point5.
