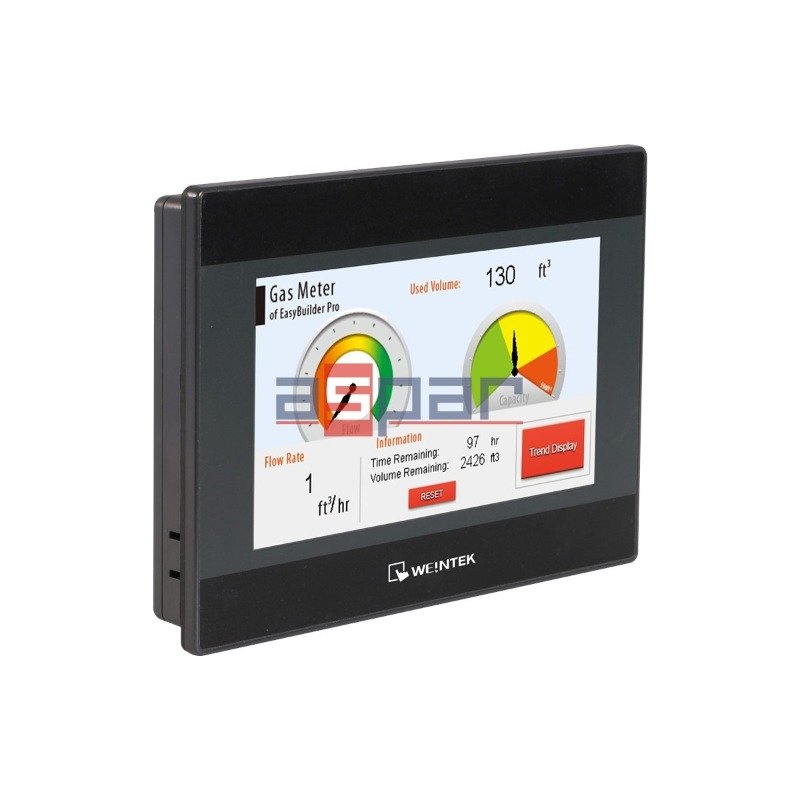

Human Machine Interface (HMI) MT8071iP:
- touch screen, TFT color LCD
- 7.0" wide-screen size (800x480)
- ethernet, 10/100 base-T x 1
- COM1:RS-232,COM2:RS-485 2W/4W

SPECIFICATION

Dimensions WxHxD                                       200.4 x 146.5 x 34mm

Weight                                                              Approx. 0,52 kg

Input power                                                    10,5~28VDC

Power Isolation                                                Built-in

Voltage resistance                                           500 VAC (1 min.)

USB Host                                                         USB 2.0 x 1

Ethernet                                                           10/100 base-T x 1

Display                                                             7" TFT

Resolution (px)                                                800x480

Brightness (cd/m2)                                          300

Contrast Ratio                                                 500:1

Backlight Type                                                LED

Backlight Life Time                                         >30000 hrs.

Colors                                                             16M
