OVERVIEW

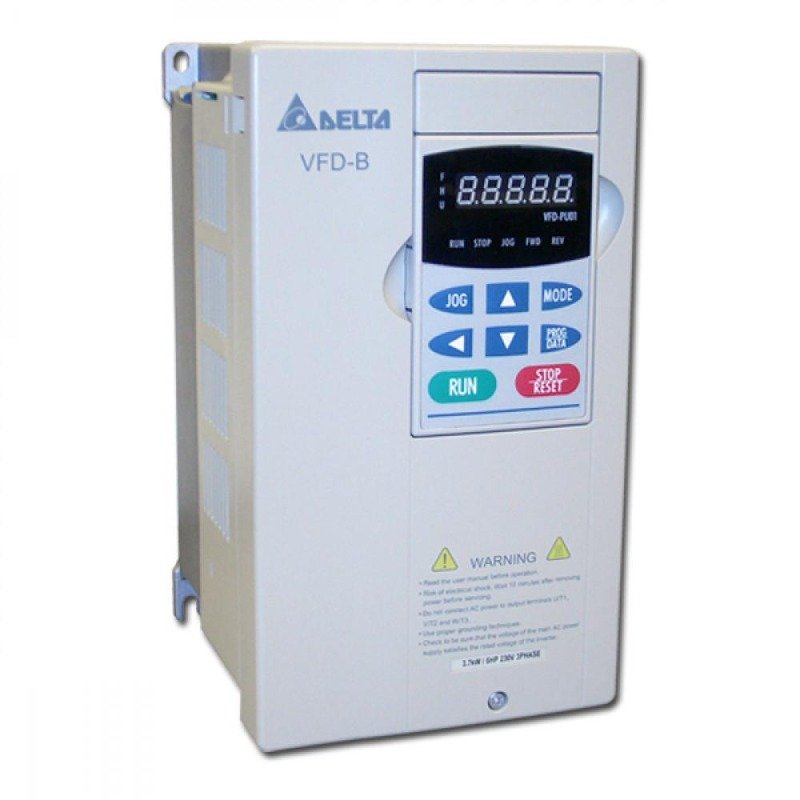

Newer model recommended replacement drive.The Delta VFD-B series is a general purpose NEMA 1 drive and offers V/F, Sensorless Vector and Closed Loop Vector control. With its Constant Torque rating and 0-2000Hz output, the VFD-B is designed to handle most conventional drive applications found in the industrial manufacturing industry. The VFD-B series drives are used in many applications including: HVAC, Compressor, Crane Gantry, Elevator, Escalator, Material Handling, Water/Wastewater, and Woodworking to name a few.

Specifications

Brand                                  Delta

Weight                                 2.70KG

Width                                   11.80cm

Height                                  18.50cm

Kilowatts                               0.75kw  to 22kw

Phase                                   1/3 phase

 Item number                        VFD007B21A

Input range VAC                   220v to 240v

Item Category                       Drives

Subcategory                          AC

Series                                    VFD-B

Nominal Input VAC                208;240 Volts AC

 Input Range VAC                  200 to 240 Volts AC

 HP (CT)                                1 Horsepower

 Amps (CT)                            5 Amps

Operator Controls                  Keypad Included

Max. Frequency                     400 Hertz

Braking type                          DC Injection;Dynamic Braking

Motor Control-Max Level       Open Loop Vector (Sensor                                                          less Vector)

Enclosure Rating                    NEMA 1;IP20

Dynamic Braking Trans          Included
