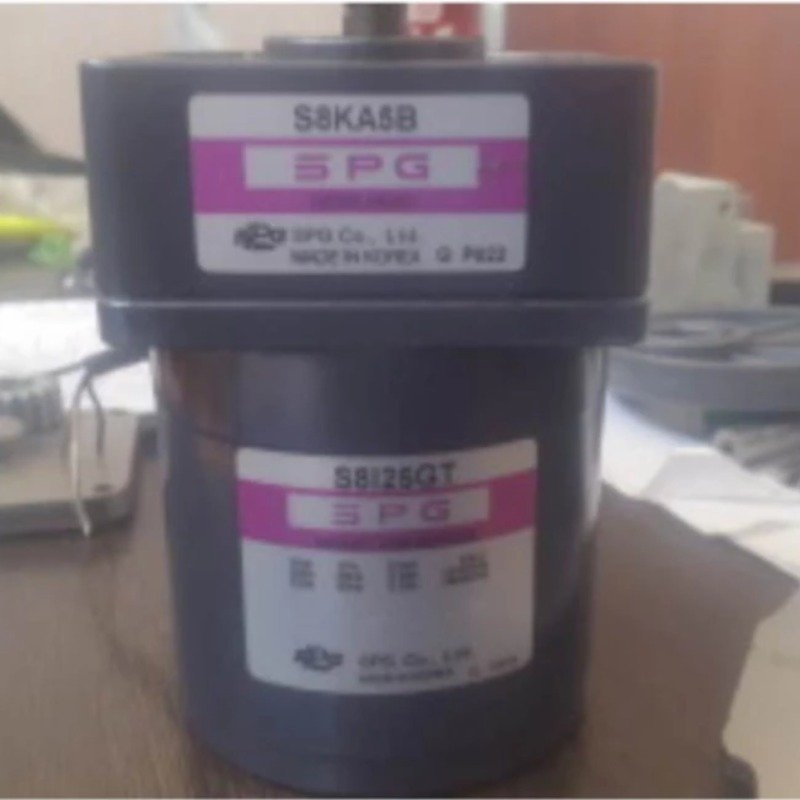

SPECIFICATIONS

 Brand                      SPG co-ltd made in Korea

Warranty                  1year

FEATURES

 The startup torque of a capacitor run type single-phase motor has a simple structure and is reliable, with high efficiency and low noise

HP(WATT)                         1/30HP (25W)

Input voltage                      115/230

Phase                                1

motor capacitor                 2.2uf/mf

Frequency                         50/60HZ

Motor RPM                       1350 TO 600

Motor frame size(in)          3.15

Motor length (in)               3.35

Duty                                 continuous

Saftey standard               CuLUS/CE

RoHS complaint               yes

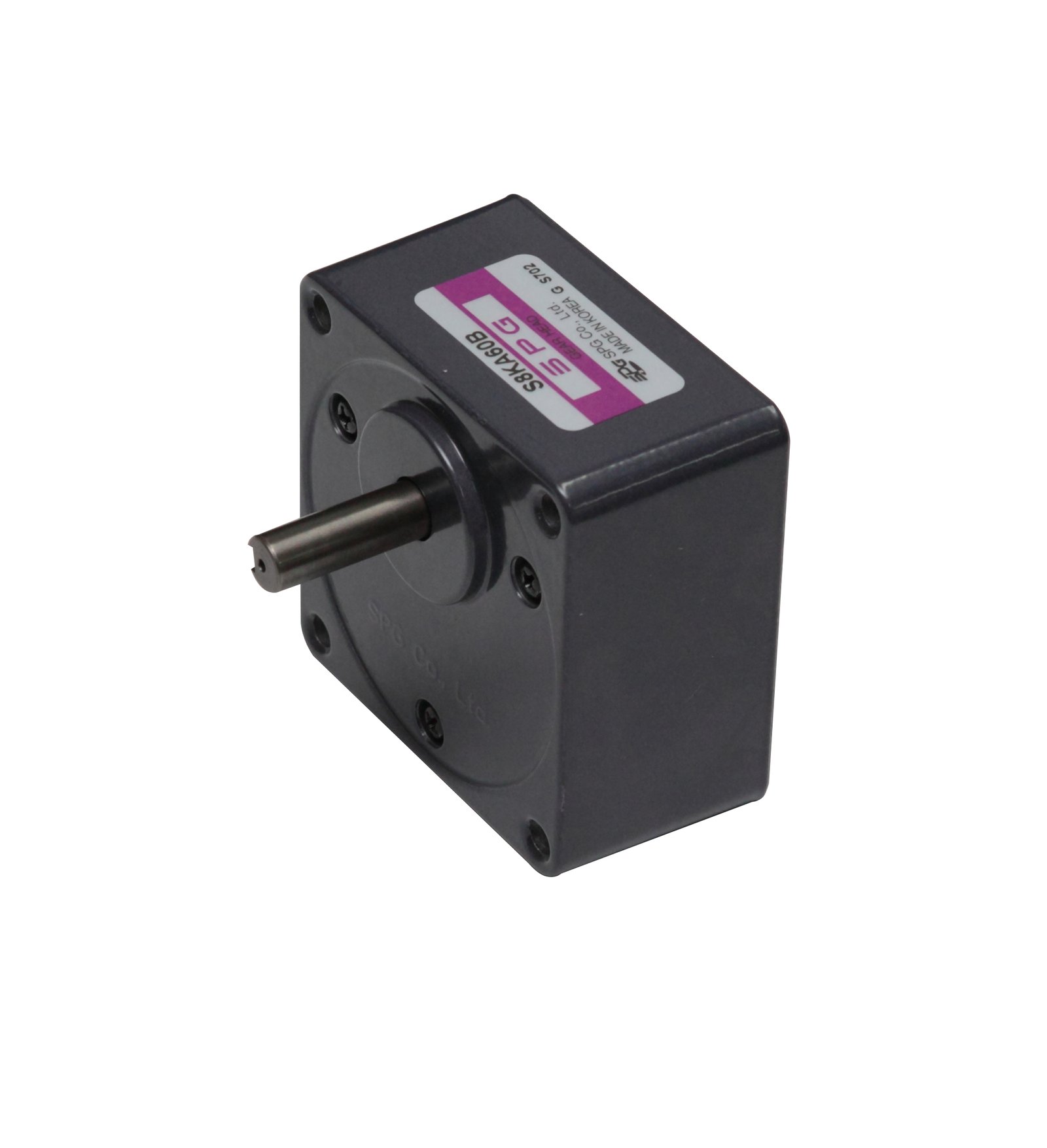

                       Gear Head

•FEATURES

 Allowable torque from when combined with gearhead.

 Allowable torque when connected with a middle gearhead with a reduction ratio of 1/10 is 7.84N-m

Type                                                    [Gear Head Only]

Square Flange Dim. A(mm)                    80

Output(W)                                            25

Environment                                            Standard

Reduction Ratio                                    60

Gear Head Type                                    Parallel Shafts

With Ball Bearing                                    Ball bearing type

Gearhead output shaft specification    Key Type

Rotation Direction                                    Direction identical to motor

Shaft impact strength                            General load

Output details(W)                                    6~25
