Industrial hot melt adhesive tank and glue melter for packaging, hygiene, woodworking and assembly lines. Configuration support and quotation in Pakistan.
Price :
Price on Inquiry
Product SKU: SbD3619liH

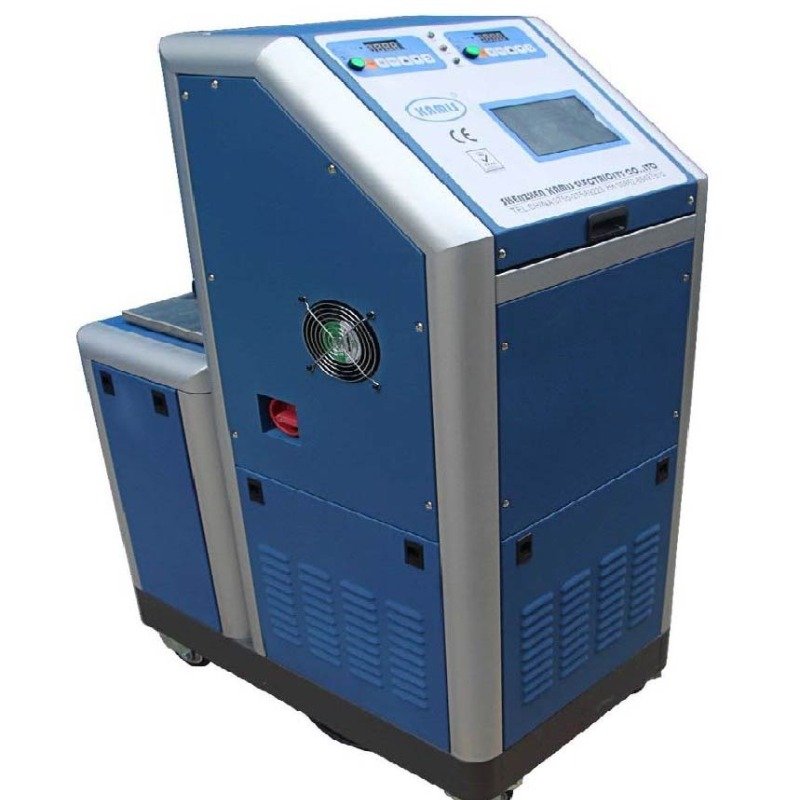

Quick answer: The Hot Melt Adhesive Tank is an industrial glue melter that heats compatible thermoplastic adhesive and delivers it through a pump to heated hoses and applicator heads. The correct tank size and dispensing configuration depend on adhesive type, production output, line speed and application pattern.
This tank-based hot melt machine is designed for controlled melting and delivery of compatible industrial adhesive. It can form the central melter in a dispensing system that includes pumps, heated hoses, glue guns or automatic applicator heads and temperature-control zones.
The RISE-series record includes 15, 25 and 35 liter tank configurations. Each project should be reviewed as a complete system because tank capacity alone does not determine melt output, pressure stability or line performance.
| Configuration | 15 L | 25 L | 35 L |
|---|---|---|---|
| Listed maximum heater power | 2.5 kW | 3.5 kW | 5 kW |
| Pump and motor options | 1 | 1-2 | 1-3 |
| Listed hose/head capability | Up to 4/4 | Up to 4/4 | Up to 6/6 |
| Approximate dimensions (L x W x H) | 700 x 430 x 950 mm | 900 x 500 x 1300 mm | 900 x 500 x 1350 mm |
Configuration note: The existing equipment record lists 220/380 VAC and 50/60 Hz options. Voltage, phase, frequency, heater load, pump arrangement, hose channels, dimensions and actual melt-rate requirements must be confirmed in the technical quotation before manufacture or supply.
Industrial hot melt adhesive tanks are commonly specified for packaging and carton sealing, labeling, woodworking, product assembly, hygiene and nonwoven manufacturing. Suitability depends on the adhesive chemistry, bonding surfaces, open time, operating temperature, required bead or spray pattern and production duty cycle.
A tank melter should not be selected by industry name alone. Adhesive consumption, peak demand, warm-up time, standby periods, pump output, hose length and the number of applicator heads all influence the required configuration.
The tank, pump, manifold, heated hoses, temperature sensors, connectors and applicator heads must be selected as a compatible dispensing system. For replacement or expansion projects, send photos of the existing equipment labels, connectors and hose ends with the current operating details.
See the hot melt adhesive heated hose compatibility guide or browse hot melt applicators in Pakistan for related system components.
Follow the adhesive supplier's processing window and the machine-specific operating instructions. Avoid overheating or prolonged high-temperature standby, keep the tank covered, prevent foreign material from entering the reservoir and inspect filters, pumps, hoses and fittings during planned maintenance.
Hot adhesive, pressurized lines and energized heater circuits present burn, pressure and electrical hazards. Installation, troubleshooting and servicing should be carried out by trained personnel after electrical isolation and safe pressure release.
A hot melt adhesive tank heats and melts compatible thermoplastic adhesive, maintains the selected process temperature and feeds molten adhesive through a pump to heated hoses and applicator heads.
The recorded RISE-series configurations are 15, 25 and 35 liters. Final availability, electrical supply, pump count, hose capacity and output must be confirmed for the required configuration.
Typical applications include packaging, carton sealing, labeling, woodworking, product assembly, hygiene and nonwoven manufacturing when the selected adhesive and dispensing configuration are compatible.
Yes, when the hose, applicator head, voltage, temperature sensor, connector, pump capacity and control zones are selected as one compatible system.
Provide the adhesive grade and form, application, required output, operating temperature, line speed, bead or spray pattern, tank size, hose and head quantity, electrical supply and delivery city.
Request configuration support: Send the process details, required tank size and delivery city through the product inquiry form. Khawaja Engineering will review the application before confirming configuration, availability and quotation.
This is a configurable industrial adhesive system supplied through technical inquiry. Tank size, electrical supply, pump arrangement, control zones, heated hoses, applicator heads and adhesive compatibility must be confirmed in writing before order acceptance.
Returns, inspection requirements and warranty handling follow the Return, Refund and Warranty Policy. Commissioning conditions, adhesive contamination, unauthorized modification, incorrect electrical supply and operation outside the confirmed specification may affect return or warranty eligibility.
For configuration and policy questions, contact info@khawajaengineering.com before placing or dispatching an order.
