PKR
Price :
PKR800
PKR1000
Product SKU: TiG1574lY5
Specifications
Brand China

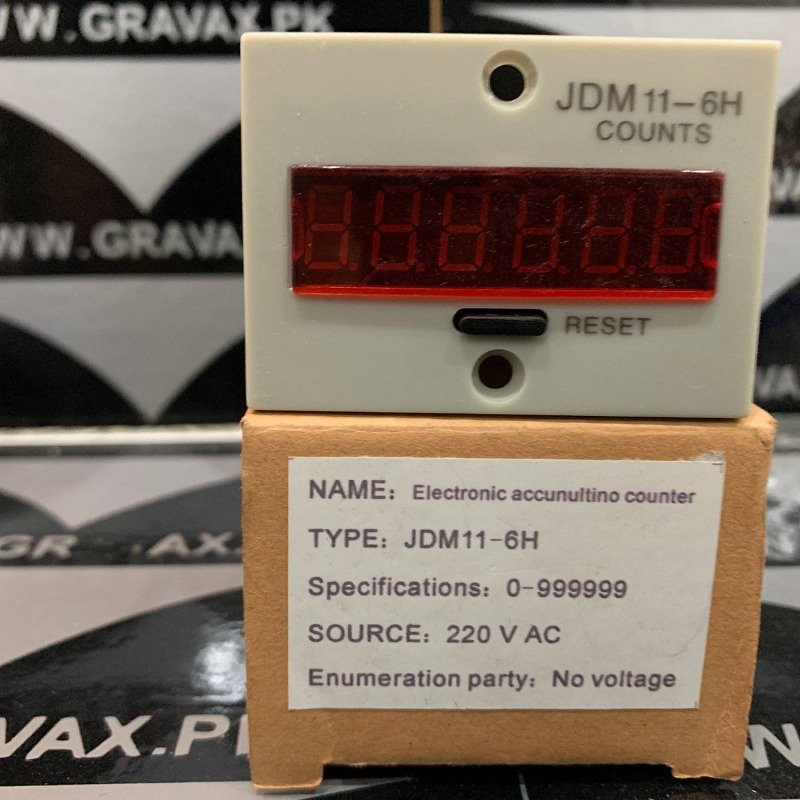

Model NO JDM11 series
Mounting Panel
Matched sensor NPN type: M8 2mm Sn, M12 4mm Sn, M18 8mm Sn, M18 2m Sn, M30 4m Sn
PNP type: M8 2mm Sn, M12 4mm Sn, M18 8mm Sn, M18 2m Sn, M30 4m Sn
Alias name JDM11 series counting relay, counter relay
Supply voltage 12, 24Vdc;(12, 24,36,110,220 or 380v)AC ;100-240VAC/DC
Operating mode UP counting
Input Signal Contact, level, sensor
Max. counting speed 10cps
No-power memory 10 years min
Power consumption 3VA max
Indication method 8-segment 4-digital display
Perforate dimensions 5110x26 10 mm
Counting error ≤1
Power reset ≥1s
Dielectric strength 2000Vac, 50/60Hz for 1min
Insulation resistance 100MΩ min. at 500 VDC
Operating temperature -5 to 45 °C
Operating humidity 30-85% RH max, non-condensing
