FEATURES

● Rated breaking capacity is as large as 35K and therefore very safe.

● The lineup now includes 15A ~ 100A rated current.

● Accessory equipment can be easily mounted.

● This CE Marking compliant product has passed certification testing.

SPECIFICATION

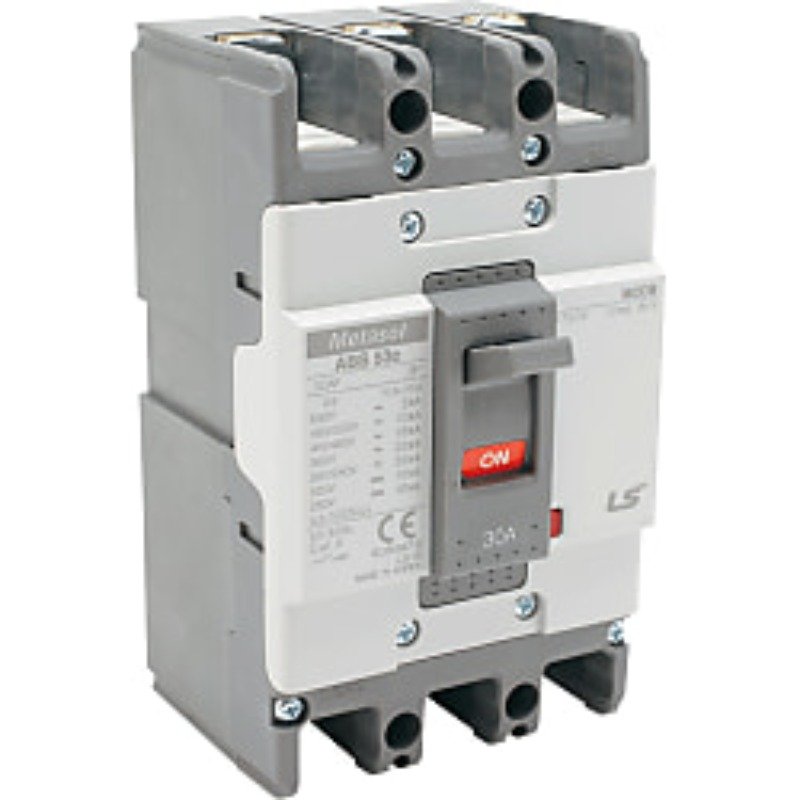

Model NO                                                  ABS-53C-40A

Ampere frame                                           50 AF

Rated block capacity AC 200 V(kA)         35

Number of electrodes                               3

Rated current(A)                                      40

Mounting method                                    Screw-fastened

Connection method                                 Front Type

Representative standards                       PSE / CE

Dimension height(mm)                            130

Dimension width(mm)                              75

Dimension depth(mm)                             60

Compatible Circuit Breaker Model          High Cut-off Current Type
