Product detail

Counting relay is used in the control circuit of alternating current 50Hz, rated working voltage 220v, direct working voltage 24v as counting component which connects and break the circuit by the set number.

Counting relay, adopting the single chip circuit and high performance counting chip, possess of wide counting range, multiple counting modes and counting signal input.

The product characterized by the stable counting performance reliability, is widely used in the industrial automation control.

This series counter relays/meter counters meet the standard of GB14048.5 and JB/T8794 and got CCC approval.

Specifications

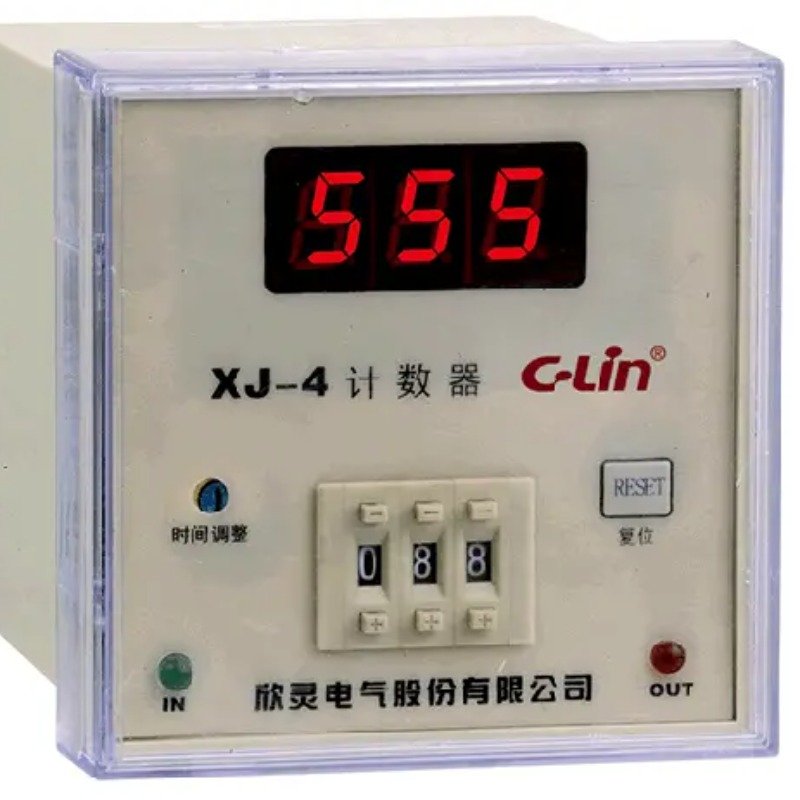

Model NO                           HHJ7-A, XJ-4

Theory                                 Digital

Function                              Addition counter

Usage                                  Time counter, Industrial

Type                                    Counter

Working power                 DC 24V, AC 220V

Counting speed                 High frequency 1000 times/ Second: Low frequency 30 times

Counting range                 1-999

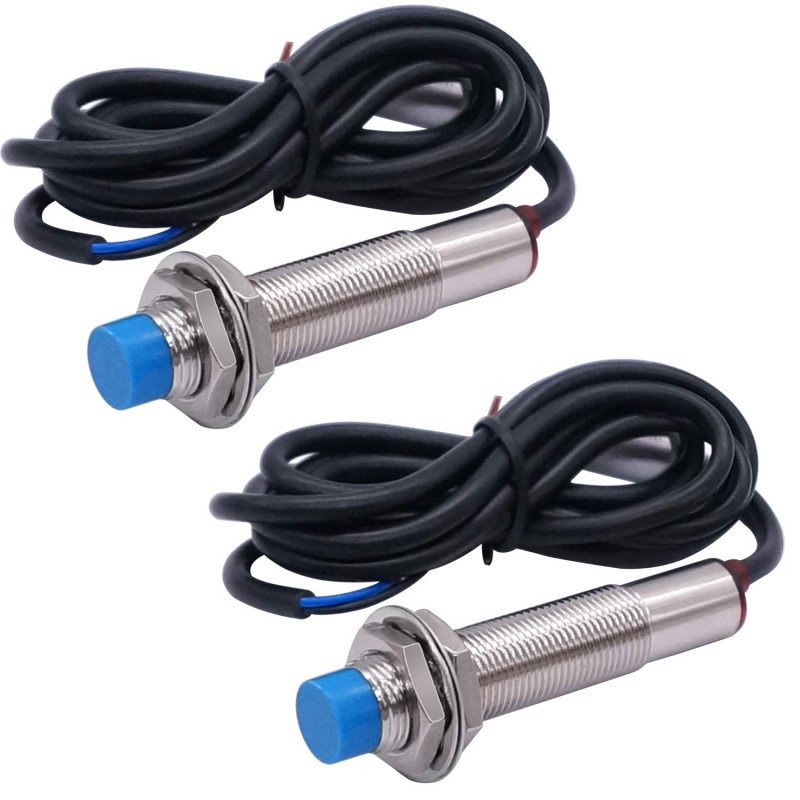

Input signal                        Con6act signal: Meter wheel, PNP NO Photoelectric /Proximity sensor

Output modes                   N, C, F modes

Power of memory            10 years

Contact capacity               5A AC220V (resistance)

Outline dimension            96*96*75 (150) mm

Trepanning                         92*92mm

Installation mode              Panel mode
