Features

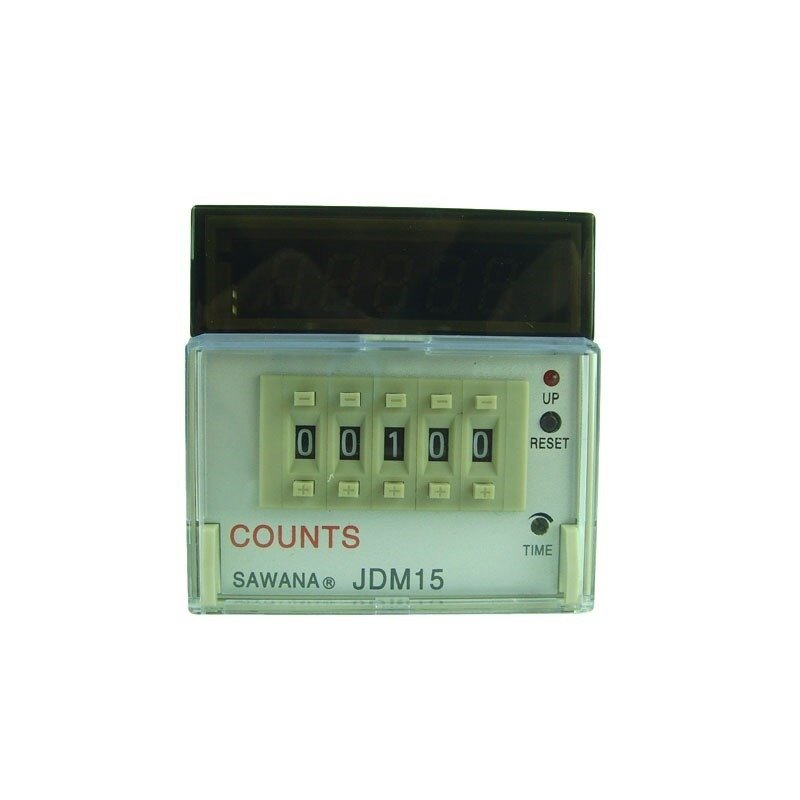

·         Electronic industry 5 digital counting accumulator counter AC220V /110V JDM15 Power off memory counting.

·         This Count Relay can be used as a counting control element in the circuit control system.

·         These are Widely used in various automatic controlling system.

·         Don't adjust the thumbwheel switch when the Counter is working.

·         The cable for the input of count signal and reset signal should be a twin-cord wire, which should not too long and should grounding on the signal input end.

·         Please do not operate in the bad environment of shaking, hitting, corrosion, dusty, static, high temperature, direct shiny.

·         Dont use the same power supply cable with large inductive load together, such as: Motor, Electromagnet etc

Specifications

Brand                                  SWANA

Model NO                           JDM-15

Counting range                   1-99999

Supply voltage                    220v AC/110v AC

Size                                    72mm*72mm

Warranty                             1 year
