Applicable scopes

The new NXC AC contactor feature a novel appearance and a compact structure.They are mainly used for frequent starts and control of AC motors as well ass remote circuit making/breaking.They can also be combined with appropriate thermal overload relays to form electromagnetic starters.

SPECIFICATION

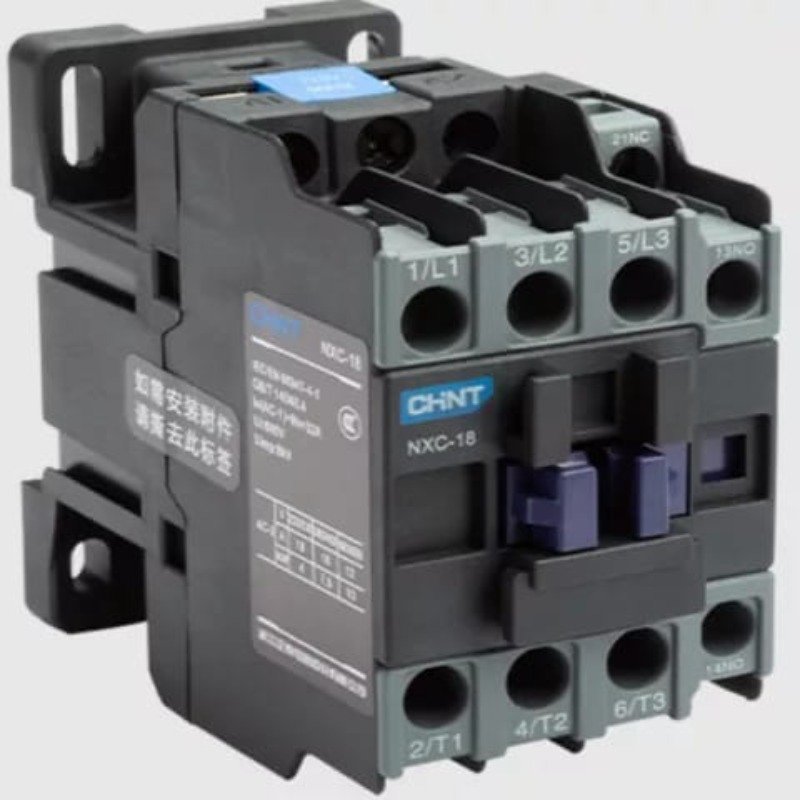

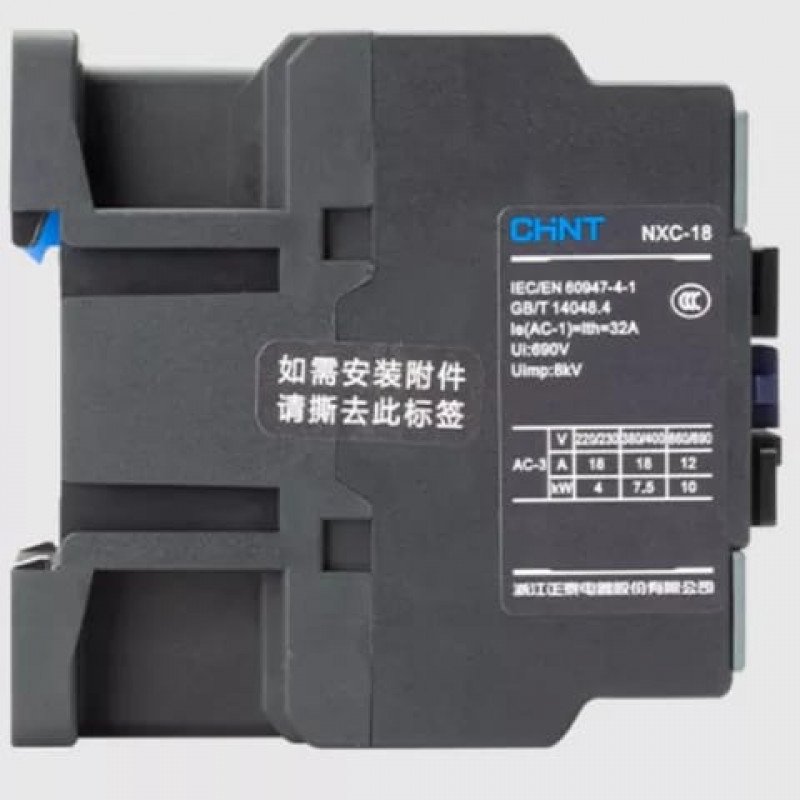

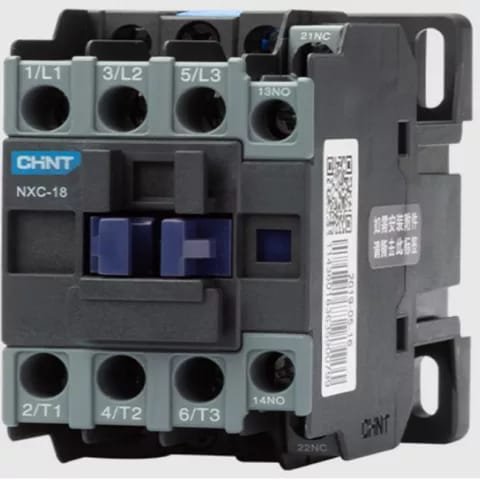

Brand                           Chint

Model no                      NXC-18

Voltage                         220V

PARAMETERS

Rated operation current le:6A-630A

Rated operation current Ue:220V-690V

Rated insulation voltage: 690V (NXC-06M~100),1000V (NXC-120-630)

Number of Poles:3P and 4P ( only for -06M-12M)

Coil control method: AC (NXC-06M-225), DC (NXC-06M-12M), AC/DC (NXC-265~630)

Installation method.NXC-06M-100 rail and screw installation, NXC-120~630 screw installation.
