SPECIFICATION

Brand Name                                                    QIANJI

Model Number                                    JQX-60F 1Z

Theory                                                Voltage Relay

Usage                                                 PROTECTIVE

Size                                                    Miniature

Protect Feature                                  Sealed

Contact Load                                     High Power

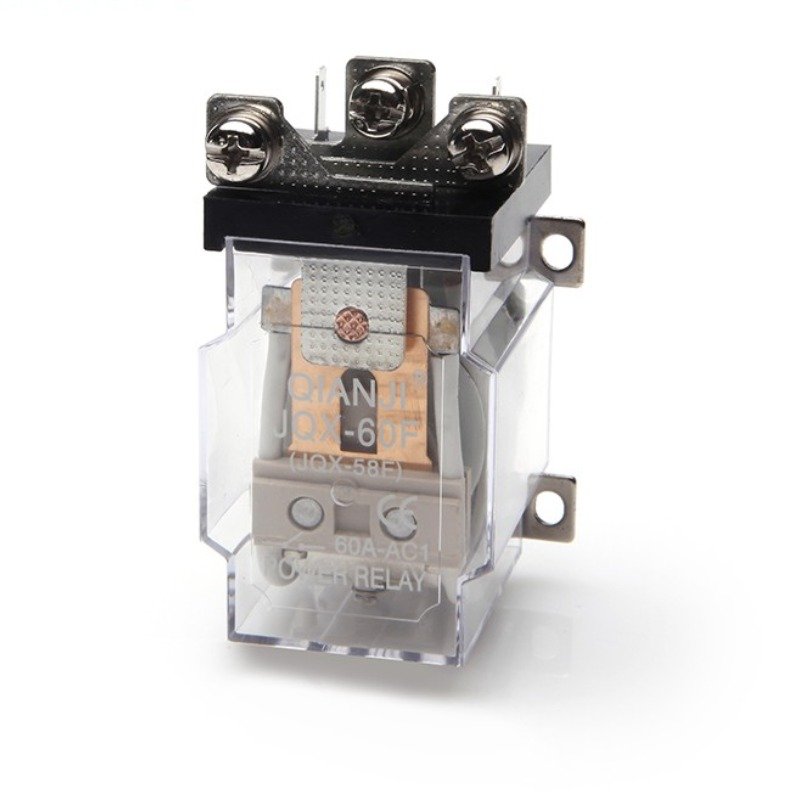

Product name                                    60A Relay Jqx-60F 1Z Power Relay

Contact Ratings                                 1Z,1H,1D

Contact Resistance                           100mΩ(1A 6VDC)

Contact Material                                AgCdO

Voltage                                              12v

Ampere                                              60amp

Insulation Resistance                        1000MΩ,500VDC

Operate Time                                    25ms/25ms

Terminal Type                                   Screw

Nominal Coil Power                          DC:2.0W AC:2.5VA

Product Certifications                        CE
